Robotic Welding Cells
Ready-To-Ship Systems
If you need a robotic welding solution with short delivery time, quick setup and minimal downtime, look no further. At OTC DAIHEN, we offer robotic welding systems that are in-stock and ready to ship. Our systems are delivered fully equipped with safety features, user-friendly controls and an intuitive operating panel, allowing you to boost your production immediately.
Advantages of Ready-to-Ship Welding Systems
Our production-ready, turn-key welding systems deliver exceptional value and efficiency. With a prefabricated welding solution, you benefit from:
- A cost-effective, standard production weld cell that is pre-engineered, preassembled and ready to ship.
- Short delivery time, simplified cell setup and fast installation.
- Seamlessly integrated components, including the robot, controller, positioner and power source.
- A fast track to boosting fabrication output for a competitive advantage.
Don’t wait! Limited Quantities Available.
Estimated 1-2 week delivery time.

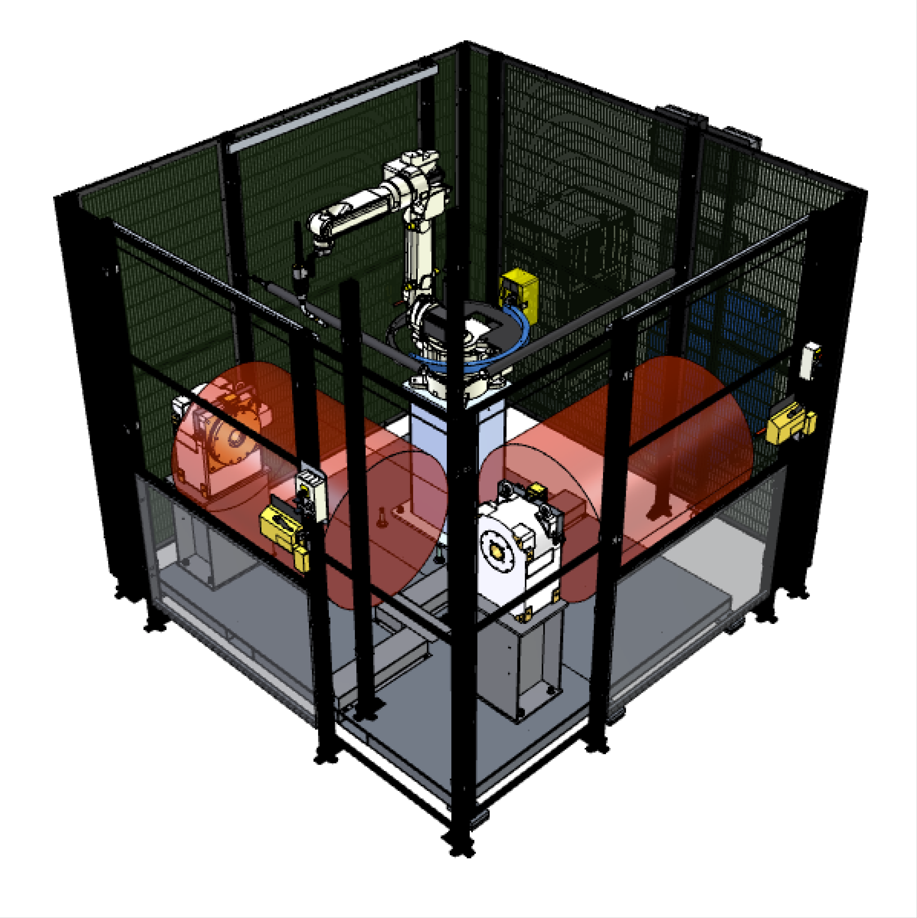

ECO-ARC 290 Compact Robotic Welding Cell – READY TO SHIP
The OTC DAIHEN ECO-ARC 290 compact production robotic welding cell is a dual servo-controlled, headstock parts positioning cell designed for small- to medium-sized parts. The ECO-ARC 290 includes one arc-welding robot and two servo-controlled headstocks (station 1 and station 2), all on a single base that is easy to move. At approximately 2,500 kg in weight, its footprint is small compared to most other advanced robotic welding cells.
Quantity (1) with a 1-2 Week Delivery
- Dual 250kg headstock positioners for uninterrupted production
- Standard forklift pockets in base for easy movement
- Ideal for small- to medium-sized parts, such as automotive parts
- One arc-welding robot (standard reach)
- FD 21 robotic controller
- Robot manipulator
- Teach pendant 8 meter
- Integrated Welbee II advanced welding power source with wire feeder and torch
- Dual 250kg headstock positioners for uninterrupted production
- Full perimeter safety guarding including OSHA-mandated arc-flash protection and safety interlocked access
- Welding gas bottle mount with regulator/flow meter included
- Standard forklift pockets in base for easy movement
ECO-ARC 200B Robotic Welding Cell – READY TO SHIP
The OTC ECO-ARC 200B has a small base with floor-mounted safety fencing, arc flash curtains and manually sliding operator load doors. It is economically designed with stationary tables for durability and quick cycle times. A simple, compact design allows for quick teach times and part access.
Quantity (2) with a 1-2 Week Delivery
- Manually sliding operator load doors
- Smaller base with floor-mounted safety fencing and arc flash curtains
- Best suited for production runs of medium to high volume, with little or no part positioning
- Smaller base with floor-mounted safety fencing and arc flash curtains
- Manually sliding operator load doors
- 2 stationary tables with standard robot manipulator (FD-V8)
- 1 arc welding robot
- Integrated Welbee II advanced welding power source with wire feeder and torch
- Advanced robot controller
- Teach pendant
- Steel tubular frame assembly
- Zone Ring for station designation
- Standard forklift pockets in base for easy movement
- Steel wall station divider
ECO-ARC 200 Robotic Welding Cell – READY TO SHIP
The OTC DAIHEN ECO-ARC 200 is economically designed with pneumatic shutter doors and stationary tables for quick cycle times. A simple, compact design allows for quick teach times and part access.
Quantity (1) with a 1-2 Week Delivery
- Pneumatic shutter doors
- Standard forklift pockets in base for easy movement
- Best suited for production runs of medium to high volume, with little or no part positioning
- Includes pneumatic shutter doors
- Standard forklift pockets in base for easy movement
- 2 stationary tables with standard robot manipulator (FD-V8)
- 1 arc welding robot
- Integrated Welbee II advanced welding power source with wire feeder and torch
- Advanced robot controller
- Teach pendant
- Steel tubular frame assembly
- Perimeter safety guarding
- Zone Ring for station designation
- Steel wall station divider
DT-ARC 500 Robotic Welding Cell – READY TO SHIP
The DT-ARC 500 is a dual, servo-controlled head and tailstock-positioning cell, designed for medium and large parts. The two-station configuration allows the operator to prepare work on station one while the robot welds on station two. It is a flexible design to allow for 180-degree and 120-degree station orientations. The open station load design allows for crane access with heavier payloads.
Quantity (0) with a 1-2 Week Delivery
- Dual A2PB-500 headstock positioners
- Manual arc flash safety curtain at individual operator stations
- Ideal for medium and large parts
- Allows for 180-degree and 120-degree station orientations
- Open station load design allows for crane access with heavier payloads
- Dual A2PB-500 headstock positioners
- 1 arc welding robot
- Robot manipulator in either standard or long-reach arm
- Integrated Welbee II advanced welding power source with wire feeder and torch
- Advanced robot controller
- Teach pendant
- Manual arc flash safety curtain at individual operator stations
- Common base for HS/TS assembly
- Zone ring for station designation
- Access door on LH side
- Arc flash curtain for cross-station protection
- Floor-mounted safety fencing with arc flash curtains
ED-ARC 100 Robotic Welding Cell – READY TO SHIP
The OTC ED-ARC 100 is a completely mobile, fully enclosed and safe interlocked arc welding training station. The OTC ED-ARC 100 features a stationary table design to allow robotic weld training on small parts with an FD-H5 robot manipulator.
Quantity (1) with a 1-2 Week Delivery
- Mobile, fully enclosed arc welding training station with compact robot manipulator
- Single station tabletop surface with 610mm x 720mm work area
- Ideal for small parts that fit in the 24” x 28.3” workspace and can quickly be converted to robotic welding
- Flat tabletop surface with 610mm x 720mm work area
- Mobile, fully enclosed arc welding training station with compact robot manipulator (FD-H5)
- Lightweight aluminum frame and polycarbonate arc flash enclosure
- Leveling casters for stable installation/easy movement when needed
- Front-load access door with tinted window and safety interlock
- Side access door with tinted window for load/maintenance and safety interlock
- Tinted panels provide better light in work area for training visibility and operator safety
- Shelf-mounted welding power source
- Standard Display Monitor
ECO-ARC 200L Robotic Welding Cell – READY TO SHIP
Weighing in at approximately 3500 kg, the OTC ECO-ARC 200L (large) is a heavy-duty version of the 200LB. It provides a larger work envelope with a long arm robot manipulator and two larger tabletops. Like others in the 200 series, it is economically designed with stationary tables for durability and quick cycle times.
Quantity (0) with a 1-2 Week Delivery
- Pneumatic shutter doors
- Standard forklift pockets in base for easy movement
- Larger work envelope with long arm robot manipulator and two larger tabletops
- Best suited for production runs of medium to high volume, with little or no part positioning
- 2 stationary tables with long-reach robot manipulator FD-V8L (S2)
- 1 arc welding robot
- Integrated Welbee II advanced welding power source with wire feeder and torch
- Advanced robot controller
- Teach pendant
- Smaller base with floor-mounted safety fencing and arc flash curtains
- Manually sliding operator load doors
- Steel tubular frame assembly
- Zone Ring for station designation
- Standard forklift pockets in base for easy movement
- Steel wall station divider
