Welding Power Sources

Welbee II Welding Power Sources

Known as a leader in innovation, the Welbee II welding power source series provides the highest efficiency and quality in arc welding. The Welbee II series includes an advanced, user-friendly control panel, additional operating functions and an on-screen display of the supported functions, errors and data tracking. Some of its most advanced features include: real-time monitoring to alert changes needed prior to spatter creation, easy monitoring of polarity and voltage signals, an on-screen guide of recommended parameters for the best weld and more.

Welbee II Ready-to-Weld Bundles

Welbee II Ready-to-Weld Bundles

Our best-selling Welbee II welding power sources (P400, P400L & P500L) come in complete, assembled and ready-to-weld bundles. Add the gas and wire and you are ready to weld! All that and discounted bundle pricing!

Request a Quote

BASE BUNDLES INCLUDE:

  • Welbee II welding power source
  • Welbee wire feeder
  • Welbee trolley with dual-bottle rack
  • Weld cables, feeder cables & gas regulator/flow meter

AIR-COOLED BUNDLES INCLUDE:

  • Steel Blue Torch III 400A air-cooled welding torch, 15’ lead with starter kit
  • Aluminum Blue Torch III 300A air-cooled welding torch, 13’ lead with starter kit

WATER-COOLED BUNDLES INCLUDE:

  • Welbee integrated water cooler with DAIHEN super-coolant
  • Steel Blue Torch III 500A air-cooled welding torch, 20’ lead with starter kit
  • Aluminum Blue Torch III 400A, water-cooled welding torch, 13’ lead with starter kit

Convenience bundles add a 2nd Welbee wire feeder and cables for quick changeover to different materials.

  • WBB-P402-BASEA: P400 Base, Air-Cooled
  • WBB-P402-CONVA: P400 Convenience, Air-Cooled
  • WBB-P402-BASEW: P400 Base, Water-Cooled
  • WBB-P402-CONVA: P400 Convenience, Water-Cooled
  • WBB-P402L-BASEA: P400L Base, Air-Cooled
  • WBB-P402L-CONVA: P400L Convenience, Air-Cooled
  • WBB-P402L-BASEW: P400L Base, Water-Cooled
  • WBB-P402L-CONVA: P400L Convenience, Water-Cooled
  • WBB-P500L-BASEA: P500L Base, Air-Cooled
  • WBB-P500L-CONVA: P500L Convenience, Air-Cooled
  • WBB-P500L-BASEW: P500L Base, Water-Cooled
  • WBB-P500L-CONVA: P500L Convenience, Water-Cooled

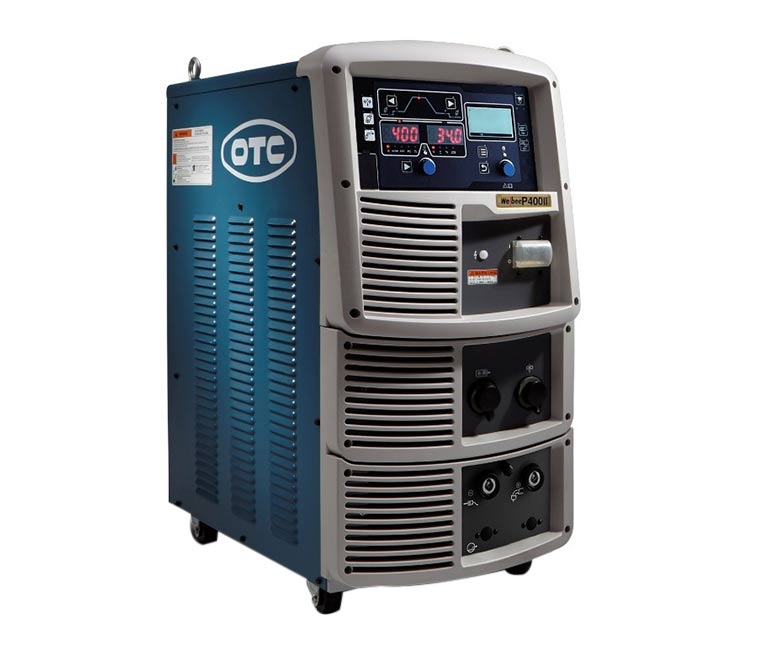

Welbee II P400 (DC, DC Pulse, DC WavePulse)

Our 400A WavePulse model for welding iron, stainless and aluminum. This Welbee II P400 inverter-based, WavePulse weld power source achieves high-quality pulse welding via an optimized waveform control according to the type of metal being welded. Arc stability is perfect, even during high-speed welding.

Request a Quote

  • Optimized Pulse GMAW modes for a wide variety of materials
  • TIG-like bead on aluminum, stainless and carbon steels
  • Compensates for irregularities in shielding gases
  • Improved weldability of zinc-coated steels

WavePulse II Welding Mode

Manual Aluminum – WavePulse II

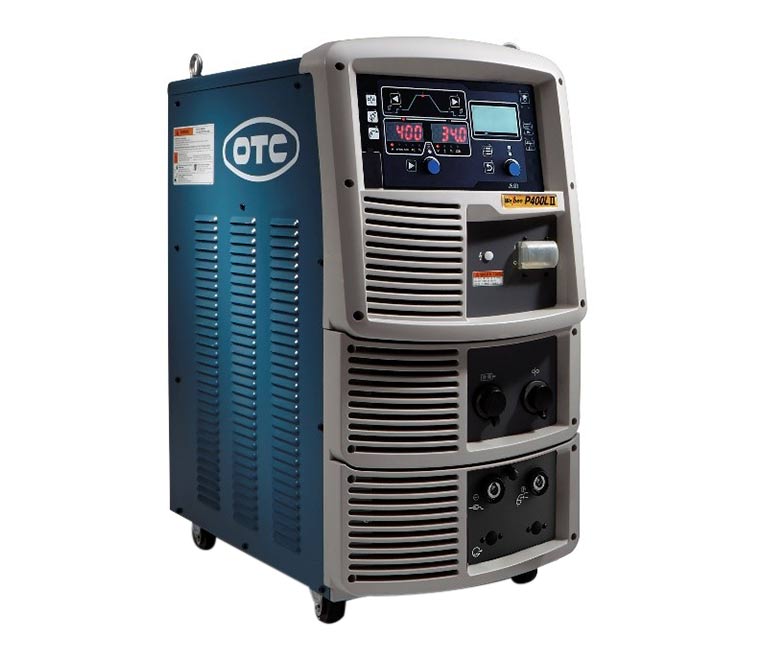

Welbee II P400L (DC, DC Pulse, DC WavePulse, DC Low Spatter)

Our 400A, inverter-based weld power source delivers optimum welding performance on steel, stainless steel and aluminum. This Welbee II P400L significantly reduces spatter generation across the entire range of low to high welding currents, delivering high-quality pulse welding by performing optimized waveform control according to materials.

Request a Quote

  • Pulse and low spatter mode combined into a 400A welder supporting both 3-phase and single-phase input power
  • CBT-EX extra-low spatter mode for carbon and stainless steels
  • Reduced undercut during high-speed welding
  • High duty cycle for high output and automated applications
Welbee II P500L

Welbee II P500L (DC, DC Pulse, DC WavePulse, DC Low Spatter)

Our 500A, inverter-based weld power source delivers optimum welding performance on steel, stainless steel and aluminum. This Welbee II P500L significantly reduces spatter generation across the entire range of low to high welding currents, delivering high-quality pulse welding by performing optimized waveform control according to materials.

Request a Quote

  • CBT-EX extra low spatter mode for carbon and stainless steels
  • Reduced undercut during high-speed welding
  • High duty cycle for high output and automated applications
  • J-Solutionâ„¢ option for exceptional weldability of zinc-coated steels

No-Spatter on Stainless Steel

Welbee W400 AC-MIG

Welbee W400 AC-MIG

Our 400A dual-inverter-based weld power source delivers AC-MIG welding with both WavePulse and AC WavePulse capability. This Welbee W400 is ideal for applications requiring precise control of the heat input to the substrate in balance with the heat input to the welding wire.

Request a Quote

  • Improved welding support for thin plate aluminum via improved AC welding mode
  • Synchro-MIG function allows for optimized welding of different plate thicknesses
  • AC Pulse and AC WavePulse modes provide beautiful welds with reduced soot
  • Standard Aluminum & Stainless Steel welding modes
  • 80 kHz Digital Inverter
  • Control the weld current via a torch switch
  • Crater Fill Function prevents crater oxidation
  • 3 phase primary (460 Volts)
  • 100 job memory storage for semi-automatic use

WavePulse II Welding Mode

Manual Aluminum – WavePulse II

Welbee A350P AC/DC TIG

Welbee A350P Dual-Inverter, AC/DC TIG Weld Power Source

The WELBEE WB-A350P is the ultimate TIG welding machine for both thin to thick plate welding applications. It includes variable AC frequency control that provides precise arc concentration, as well as controllable input heat.

Request a Quote

  • Built around a dual-inverter architecture that enables support of our exclusive GTAW process: AC+DC Hybrid welding. An ideal welding mode for aluminum, it combines the cleaning action of electrode-positive welding, with the deep penetration and focus into the base metal of electrode-negative welding…all while maintaining the shape of the tungsten electrode.
  • Automation ready with Fieldbus interfaces (EtherNet/IP and PROFIBUS), supporting simple conversion from manual welding to semi-automated and fully-automated applications.
  • Easy operation via a user-friendly interface that revolves around a single knob to adjust weld process parameters.
  • Large LED displays to notify both settings and weld parameters.
  • Silent Pulse Function reduces arc noise, improving the work environment.
  • Improved welding support for thin plate aluminum via High AC Frequency.
  • New waveform control allows for very stable output current.
  • Improved instant arc start ratio.
  • 100 job memory for semi-automatic and retrofit use.

WELBEE A350P TIG ART

Welbee II M350L Multi-Process

Welbee II M350L Multi-Process (DC, DC Low Spatter)

Our 350A, inverter-based, multipurpose, low-spatter weld power source, the Welbee II M350L provides significant reduction of spatter across your entire range of welding currents to deliver high-quality, high-speed welding.

Request a Quote

  • CBT-EX extra low spatter mode for carbon and stainless steels
  • Low arc voltage range is expanded for incredible arc control
  • Reduced undercut during high-speed welding
  • Minimal spatter even with 100% CO2
Welbee II M350 Multi-Process

Welbee II M350 Multi-Process (DC)

Our 350A inverter-based weld power source is the standard welding supply for high-quality welding in any situation.  This Welbee II M350 multipurpose unit is well suited for general welding applications requiring significant improvement in arc stability in the range of low to high electric currents, while delivering a beautiful weld bead with a uniform bead end and less voltage fluctuation, even during high-speed welding.

Request a Quote

  • Low arc voltage range is expanded for incredible arc control
  • Reduced undercut during high speed welding
  • Minimal spatter even with 100% CO2
Welbee II M500 Multi-Process

Welbee II M500 Multi-Process (DC)

Our 500A inverter-based weld power source is the standard welding supply for high-quality welding in any situation. This Welbee II M500 multipurpose unit is well suited for general welding applications requiring significant improvement in arc stability in the range of low to high electric currents, while delivering a beautiful weld bead with a uniform bead end and less voltage fluctuation, even during high-speed welding.

Request a Quote

  • Optimum welding current control depending on intended use (Standard Mode – High-Speed Mode – Extension Cable Mode)
  • Incredible arc stability from low to high current range
  • Digital Turbo Start and End Pulse function provides excellent arc starts
OTC DAIHEN MIG 135 Welding Power Source

MIG-135

The MIG 135 is the ideal solution for small welding jobs and repairs. This has been a long-time favorite seller with sign shops, auto repair centers and general construction workers. The MIG 135 utilizes a special weld spool gun, also provided by OTC DAIHEN.

Request a Quote

  • The MIG 135 comes with five separate welding modes:
    • MAG welding of mild steel
    • MIG welding of aluminum
    • MIG welding of stainless steel
    • MIG welding of galvanized steel
    • Arc spot welding
  • Ideal for thin sheet metal welding. By utilizing small wire diameters of .025″ and .030″, the MIG 135 is capable of high-speed welding for extremely thin materials, thereby eliminating slow, more tedious TIG processes.
  • Integrated wire spool and torch. Since the wire spool is incorporated in the torch, welding is possible up to 25 feet from the power source (60 feet with option).
  • Small diameter wires of .025″ and .030″ provide support for thin material.
  • Lightweight spool-gun weighs only 2.5 lbs.
  • Quick change wire spools.
OTC DAIHEN D-12000 Air Plasma Cutter

D-12000 AIR PLASMA CUTTING

Capable of clean cutting nearly 2-inch carbon steel and aluminum alloys, the D-12000 is a safe and economical alternative to Oxy-fuel cutting. It offers more unique, user-friendly features than any machine in its class.

Request a Quote

  • Maximum cut up to 2-1/2 inch
  • Water-cooled – 100% duty cycle
  • Built-in water circulator extends torch and consumable life
  • Faster, safer and more economical than oxy-fuel on 1″ carbon steel
  • Superior gouging capabilities
  • I/O receptacle for automated cutting
  • Built-in torch guard function (alarm indicates replacement time of tip and electrode)
  • Wide operation area (Up to 100 ft. torch option)
  • Advanced safety protection circuits
  • Fully variable output
  • Cruise control
  • Pulsed pilot arc start reduces electrode wear
  • Diagnostic indications for troubleshooting
  • Wheels provided for greater maneuverability
  • Long consumable life. The D-12000’s built-in water circulator provides efficient cooling of the torch head and circulates water directly inside the electrode for extended consumable life. Compressed air is used for cutting and cooling the torch, thereby eliminating the need for expensive gases.
  • Production cuts up to 2-inch thick material (including aluminum).
